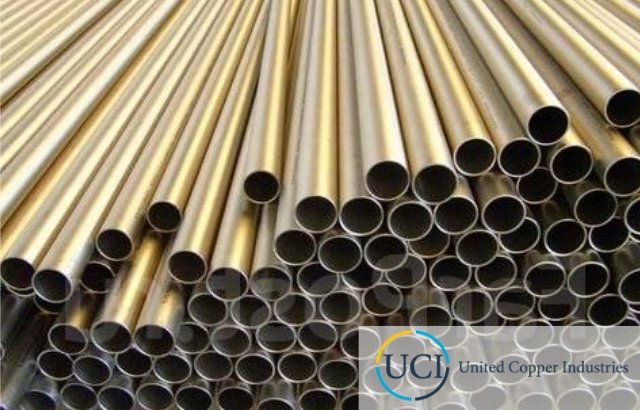

United Copper Industries is a leading Aluminium Brass Tube Manufacturer in India. We supply Aluminium Brass Tube at the lowest price with premium quality, which will guarantee the same performance in all industrial applications. We supply Aluminium Brass Rectangle Tube, which is manufactured to fit in heat exchangers, marine and power plants. Aluminium Brass Tube comes in secure packaging that keeps the material safe during handling in all areas of use.
Benefits of Aluminium Brass Tube:
- High corrosion resistance, especially in marine and heat-exchanger applications.
- Strong mechanical properties with long service life.
Table of Content
- Aluminium Brass Tube Specification
- Types of Aluminium Brass Tube?
- Size Chart Of Aluminium Brass Tube
- Equivalent Properties of Admiralty Brass Tubing
- Chemical Compostion of Admiralty Brass Tube
- Mechanical Compostion of Aluminium Brass Tube
- physical Properties of Aluminium Brass Tube
- Application of Aluminium Brass Tube
- Aluminium Brass Tube Stock Available
- Packaging of Aluminium Brass Tube
- Cities We Supply Aluminium Brass Tube in India
- Aluminium Brass Tube Exporter
Astm B111 C 68700 Aluminium Brass Square Tube Exporter, BS2871 Part 3 Cz 110 Aluminium Brass Condenser Tube Dealer, C68700 Aluminum Brass Pipe Stockist, Aluminium Brass Polish Tube Supplier in India
United Copper Industries is the largest Aluminium Brass Tube Manufacturer and Supplier in India, with top-quality solutions in iso certified material that can be used in the industry. Our Aluminium Brass Square Tube is available in various dimensions, such as 12 mm, 16mm, and 25mm, as well as in Aluminium Brass Rectangular Tube that is manufactured to be both durable and high performing. Our Aluminium Brass Alloy Condenser Tube come in standard sizes of 3 meters and 6 meters. To send any enquiry, email us at sales@unitedcopper.in.
Aluminium Brass Tubes Stockholder, Aluminium Brass Square Tube Exporter, Aluminium Brass Seamless Tube Manufacturer in India
United Copper Industries is the oldest Aluminium Brass Tube supplier in Mumbai, India. These Aluminium Brass C68700 Welded Tubing are supplied with high-quality materials and undergoes hard testing of chemicals and mechanical properties to compose and resist against corrosion. We have Aluminium Brass Seamless Tube and Aluminium Brass Welded Tube that are made by superior cold and hot rolled methods. We also check the weight of Aluminium Brass Tube is proper as per reqirement. We are also a major Hollow Brass Tube Manufacturer in India.
Specification of Aluminium Brass Tube
| Specifications | ASTM B111 / ASME B111 |
| Outer Diameter | 4mm to 150mm |
| Wall thickness | 0.25mm to 8mm |
| Type | Seamless / Heat Exchangers / Condenser Tube |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Length | 1m, 2m, 3m, 4m, 6m and as per requirement of clients |
| Cut Length | Single Random, Double Random & Cut Length |
| Application | Heat Exchangers, Refineries, Power Plants, Desalination Plants |
Types of Aluminium Brass Tube
Aluminium Brass Tube Size Chart
| Wall thickness in MM | WT / Metre | Metric in MM | Wall thickness | Imperial OD | Nominal Bore mm |
| 1.63 | 0.206 | 6.35 | 16G | 1/4″ | 3.09 |
| 0.71 | 0.077 | 4.76 | 22G | 3/16″ | 3.34 |
| 1.22 | 0.167 | 6.35 | 18G | 1/4″ | 3.91 |
| 0.91 | 0.172 | 7.94 | 20G | 5/16″ | 6.11 |
| 0.91 | 0.133 | 6.35 | 20G | 1/4″ | 4.53 |
| 1.63 | 0.345 | 9.52 | 16G | 3/8″ | 6.26 |
| 0.91 | 0.210 | 9.52 | 20G | 3/8″ | 7.70 |
| 1.22 | 0.271 | 9.52 | 18G | 3/8″ | 7.08 |
| 1.63 | 0.484 | 12.7 | 16G | 1/2″ | 9.44 |
| 0.91 | 0.288 | 12.7 | 20G | 1/2″ | 10.88 |
| 1.22 | 0.375 | 12.7 | 18G | 1/2″ | 10.26 |
| 0.91 | 0.550 | 14.29 | 20G | 9/16″ | 12.47 |
| 1.22 | 0.479 | 15.88 | 18G | 5/8″ | 13.44 |
| 1.63 | 0.622 | 15.88 | 16G | 5/8″ | 12.62 |
| 0.91 | 0.365 | 15.88 | 20G | 5/8″ | 14.06 |
| 1.63 | 0.761 | 19.05 | 16G | 3/4″ | 15.79 |
| 3.25 | 1.376 | 19.05 | 10G | 3/4″ | 12.55 |
| 1.22 | 0.583 | 19.05 | 18G | 3/4″ | 16.61 |
| 1.63 | 0.899 | 22.22 | 16G | 7/8″ | 18.96 |
| 0.91 | 0.442 | 19.05 | 20G | 3/4″ | 17.23 |
| 1.22 | 0.687 | 22.22 | 18G | 7/8″ | 19.78 |
| 1.63 | 1.038 | 25.4 | 16G | 1″ | 22.14 |
| 1.22 | 0.791 | 25.4 | 18G | 1″ | 22.96 |
| 1.63 | 1.177 | 28.58 | 16G | 1-1/8″ | 25.32 |
| 0.91 | 0.597 | 25.4 | 20G | 1″ | 23.00 |
| 1.63 | 1.316 | 31.75 | 16G | 1-1/4″ | 28.49 |
| 1.22 | 0.998 | 31.75 | 18G | 1-1/4″ | 29.31 |
| 1.63 | 1.454 | 34.92 | 16G | 1-3/8″ | 31.66 |
| 1.63 | 1.593 | 38.1 | 16G | 1-1/2″ | 34.84 |
| 3.25 | 3.040 | 38.1 | 10G | 1-1/2″ | 31.60 |
| 1.22 | 1.206 | 38.1 | 18G | 1-1/2″ | 35.66 |
| 1.22 | 1.410 | 44.45 | 18G | 1-3/4″ | 42.01 |
| 3.25 | 3.600 | 44.45 | 10G | 1-3/4″ | 37.95 |
| 3.25 | 4.140 | 50.8 | 10G | 2″ | 44.30 |
| 1.22 | 1.621 | 50.8 | 18G | 2″ | 48.36 |
| 3.25 | 4.700 | 57.2 | 10G | 2-1/4″ | 50.70 |
| 1.63 | 2.418 | 50.8 | 16G | 2″ | 47.54 |
| 3.25 | 5.248 | 63.5 | 10G | 2-1/2″ | 57.00 |
| 3.25 | 5.810 | 69.85 | 10G | 2-3/4″ | 63.35 |
| 1.63 | 2.703 | 63.5 | 16G | 2-1/2″ | 60.24 |
| 3.25 | 6.354 | 76.2 | 10G | 3″ | 69.70 |
| 3.25 | 7.460 | 88.90 | 10G | 3-1/2″ | 82.40 |
| 3.25 | 6.910 | 82.55 | 10G | 3-1/4″ | 76.05 |
| 3.25 | 8.020 | 95.25 | 10G | 3-3/4″ | 88.75 |
| 3.25 | 11.800 | 133.5 | 10G | 5″ID | 127.00 |
| 3.25 | 9.670 | 107.95 | 10G | 4-1/4″ | 101.45 |
| 3.25 | 13.900 | 158.9 | 10G | 6″ID | 152.40 |
Aluminium Brass Tube Chemical Composition
Copper Cu
79%
Nickel Ni
2%
Aluminum Al
11%
Manganese Mn
2%
Iron Fe
2%
Zinc Zn
4%
Equivalent Properties of Admiralty Brass Tubing
| SPECIFICATIONS | DESIGNATION |
| ISO | CuZn20Al2 |
| Europen | CuZn20Al2 |
| BS | CZ 110 |
| EN | CW702R |
| JIS | H3300(92) C6870 T |
| Russian | LAMs77-2-0.05 |
| DIN | 2.046 |
Aluminium Brass Tube Mechanical Properties
| Standard | ASTM B 111 | IS 1545 | BS 2871 PART3 | NFA 51 102 | DIN 1785 | JIS H3300 |
| Symbol | C 68700 | CuZn21AI2As | CZ 110 | CuZn22AI2 | CuZn20AI2 | C 6870 |
| Al | 1.8-2.5 | 1.8-2.3 | 1.8-2.3 | 1.8-2.5 | 1.8-2.3 | 1.8-2.5 |
| Cu | 76.0-79.0 | 76.0-78.0 | 76.0-78.0 | 76.0-79.0 | 76.0-79.0 | 76.0-79.0 |
| Pb | 0.07 | 0.07 | 0.07 | 0.07 | 0.07 | 0.07 |
| As | 0.02-0.06 | 0.02-0.06 | 0.02-0.06 | 0.02-0.06 | 0.02-0.35 | 0.02-0.06 |
| Fe | 0.06 | 0.06 | 0.06 | 0.06 | 0.07 | 0.06 |
| Ni | – | – | – | – | 0.1 | – |
| Zn | REM’DER | REM’DER | REM’DER | REM’DER | REM’DER | REM’DER |
| P | – | – | – | – | 0.01 | – |
| Total Impurities Max. | – | |||||
| – | 0.3 | 0.03 | 0.3 | 0.1 | – | |
| Yield Strength n/mm2 | 125 | 400Mpa Max. | – | – | 1 50-230 | – |
| 105 | 355Mpa Min. | – | – | 120-180 | – | |
| – | 415Map | – | – | – | – | |
| Condition | 61 | O | M | – | F39 | O |
| – | TA | TA | – | F34 | – | |
| – | D | O | – | – | – | |
| Hardness HV5 – | – | – | 150Min | 80-130 | – | – |
| – | – | 85-110 | – | – | – | |
| – | – | 75Max. | – | – | – | |
| Elng’Tion Percent (%) | – | 85Max. | – | – | 45Min. | 40Min. |
| – | 80-110 | – | – | 55Min. | – | |
| – | 130Min. | – | – | – | – | |
| Tensile n/mm2 Minimum | 345 | – | – | – | 390 | 373 |
| – | – | – | – | 340 | – | |
| Grain Size mm (75X) | 0.010-0.045 | 0.010-0.045 | 0.05Max. | 0.010-0.045 | – | 0.010-0.045 |
Physical Properties of Aluminium Brass Tube
| Coefficient of Thermal Expansion | 10.3 10−6Per °F (68-572 F) |
| Density | 0.301 lb/in3 at 68 F |
| Electrical Conductivity | 23 %IACS @ 68 F |
| Electrical Resistivity | 45.1 ohms-cmil/ft @ 68 F |
| Melting Point Liquid US | 1780 F |
| Melting Point Solid US | 1710 F |
| Modulas of Elasticity in Tension | 16000 ksi |
| Modulas of Rigidity | 6000 ksi |
| Specific Gravity | 8.33 |
| Specific Heat Capacity | 0.09 Btu/lb/°F @ 68 F |
| Thermal Conductivity | 58.0 BTU in/hr.ft2.°F @ 68 F |
Application Of Aluminium Brass Tube
Oil & Gas Industries
Petrochemical Industries
Medical & HealthCare Industries
Construction & Plumbing Industries
(EV) Automobiles Industries
Aluminium Brass Tube Stock Available
- C68700 Aluminum Brass Tube
- ASTM B111 Aluminium Brass
- Aluminium Brass Seamless Tube
- Aluminium Brass Polish Tube
- Aluminium Brass Heat Exchangers
- ASTM B111 Aluminium Brass Finned Tube
- Rectangular Aluminium Brass Tube
- Aluminium Brass Alloy Condenser Tube
- C68700 Cuzn20al2as Aluminum Brass Tube for Condensor System
- ASTM B111 Aluminium Brass Square Tube
- Astm B111 C 68700 Aluminium Brass Square Tube
- Asme Sb111 Aluminium Brass Rectangle Tube
- BS2871 Part 3 Cz 110 Aluminium Brass Condenser Tube
- C68700 Aluminium Brass Seamless Tube
- Aluminium Brass Hard Drawn
- Aluminium Brass Half Hard
- En 12451 Cuzn20 Al2as Welded Tube
- Aluminium Brass Light Drawn
- Nfa 51 102 Aluminium Brass Finned Tube
- Cuzn22 Al2 Aluminium Brass Polish Tube
- JIS H 3300 C 6870 Aluminium Brass Round Tube
- ASTM B 111 C 68700 Tube
- Aluminium Brass CuZn20Al2 Square Tube
- 25 Mm Thick Round Aluminum Brass Tubes
- ASTM B111 C68700 JIS H3300 Aluminum Brass Tube
- Aluminum Brass Straight Tube
- Aluminium Alloy Brass Hollow Round Tube
- Aluminium Brass Finned Tube
- ASTM C68700 Solid Drawn Condenser Tube
- 15 mm Aluminium Brass Tube
Packaging of Aluminium Brass Tube
Types of Packaging Available
The strict industry standards are used in filling Aluminium Brass Tubes to guarantee safety, durability, and damage-free delivery. All tubes are covered to prevent corrosion, cope with impact, and exposure to the environment during transportation. High-quality packaging also assists in keeping the products in their quality state up to the point of their arrival at the final consumer.
- Wooden Boxes & Crates
- Plastic/Poly Wrap Bundles
Aluminium Brass Tube Manufacturer, Supplier and Exporter - United Copper Industries
