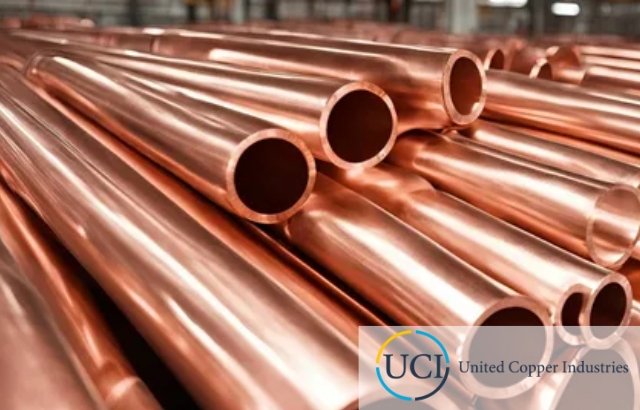

United Copper Industries is one of the prime Copper Tube used for Marine Applications Manufacturers in India, That supply high-quality and quality tubing with the aid of hi-tech. Seamless Copper Water Tube, We supply Type L, M and K designed to be strong and have marine quality anti-corrosiveness. Our Copper Seamless Tubing used in Marine Application has sizes which are 6 mm to 54 mm and lengths of 3 to 6 meters to meet varied requirements of installations. The tubes are manufacture using cold and hot rolling methods in order to guarantee high quality of strength, accuracy and durability.
Benefits of Copper Tube For Marine Application
- Strong resistance to seawater corrosion.
- Excellent heat transfer for marine cooling systems.
Table of Content
- Copper Tube For Marine Application Specification
- Types of Copper Tube For Marine Application
- Size Chart Of Copper Tube For Marine Application
- Chemical Copper Tube For Marine Application
- Mechanical Compostion of Copper Tube For Marine Application
- Application of Copper Tube For Marine Application
- Copper Tube For Marine Application Stock Available
- Packaging of Copper Tube For Marine Application
- Cities We Supply Copper Tube For Marine Application in India
- Copper Tube For Marine Application Exporter
Copper Seamless Tube Marine Application, ASTM B819 Copper Seamless Tubing For Marine Application Supplier, Copper Pipes for Marine Application Manufacturer in India
United Copper Industries is one of the largest Copper Tube for Marine Application suppliers in India, which manufactures high-quality and performance-oriented, and capable of with standing the harsh marine environment. A cold and hot rolled process is used to ensure maximum strength and dimensional precision. We supply Copper Hard Drawn Tube Marine Application, manufactures for demanding installation conditions across the marine sector. Additionally, our Copper Soft Tubes for Marine Application support flexible routing needs in various systems. Every production batch undergoes strict chemical and mechanical testing to ensure long-term stability and superior corrosion resistance.
Copper Tubes For Marine Application Supplier, Copper Tube Type L and K For Marine Application, Table X, Y, Z Copper Tubes Marine Application Exporter, Copper Tube For Marine Application Manufacturer in India
United Copper Industries is one of the prime Copper Tube for Marine Application suppliers in India, and customers rely on the company to supply quality and reliability. We supply the option of packaging, precise weight of Copper Tube for Marine Application and different schedules of Copper Tube for Marine Application, with one of the most popular being the Marine Application Copper Tube 1/2. We also have Table Z Copper Tube, which can be used in marine applications, where it is needed to be used with strength and corrosion resistance in marine water systems. Besides, we are also lead the Copper Tube for ACR application Manufacturer in India.
Specification of Copper Tube For Marine Application
| Standard | ASTM B68 / ASTM B75 / ASTM B280 / ASTM B88 / JIS H 3300 / EN1057 or BS2871: PART 2:1972 / DIN 1754/8905/ IS2501 |
| Specification | ASTM B280, JIS H3300, AS/NZS1571.JIS3300-2006 |
| Material | TU2, C1020T, C10200, T2, C1100, TP1, C1201T, C1200, TP2, C1220T, C12200, C14200, C19400, etc |
| Outer Diameter(OD) | 4mm to 150mm |
| Wall Thickness : | 0.2mm~5mm |
| Length | 1m, 2m, 3m, 6m, or as required. |
| Cut Length | Single Random, Double Random & Cut Length |
| Types | Seamless Pipes, Tube / Inner Grooved Pipes / Square Pipes, Tube / Rectangular Pipes, Tube / Finned Pipes, Tube |
Types Of Copper Tube For Marine Application
Copper Tube For Marine Application Size Chart
| I.D. & WALL THICKNESS CHART | |||||||||
| Nominal Pipe Size inches | O.D. | I.D. | Wall Thickness | ||||||
| Type | |||||||||
| L** | K* | DWV**** | M*** | DWV | L | K | M | ||
| 3/8 | 0.500 | 0.430 | 0.402 | – | 0.450 | – | 0.035 | 0.049 | 0.025 |
| 1/4 | 0.375 | 0.315 | 0.305 | – | – | – | 0.030 | 0.035 | – |
| 1/2 | 0.625 | 0.545 | 0.527 | – | 0.569 | – | 0.040 | 0.049 | 0.028 |
| 3/4 | 0.875 | 0.785 | 0.745 | – | 0.811 | – | 0.045 | 0.065 | 0.032 |
| 5/8 | 0.750 | 0.666 | 0.652 | – | – | – | 0.042 | 0.049 | – |
| 1 | 1.125 | 1.025 | 0.995 | – | 1.055 | – | 0.050 | 0.065 | 0.035 |
| 1-1/2 | 1.625 | 1.505 | 1.481 | 1.541 | 1.527 | 0.042 | 0.060 | 0.072 | 0.049 |
| 1-1/4 | 1.375 | 1.265 | 1.245 | 1.295 | 1.291 | 0.040 | 0.055 | 0.065 | 0.042 |
| 2 | 2.125 | 1.985 | 1.959 | 2.041 | 2.009 | 0.042 | 0.070 | 0.083 | 0.058 |
| 3 | 3.125 | 2.945 | 2.907 | 3.030 | 2.981 | 0.045 | 0.090 | 0.109 | 0.072 |
| 8 | 8.125 | 7.725 | 7.583 | – | 7.785 | – | .200 | .271 | .170 |
| 2-1/2 | 2.625 | 2.465 | 2.435 | – | 2.495 | – | 0.080 | 0.095 | 0.065 |
| 3.5 | 3.625 | 3.425 | 3.385 | – | 3.459 | – | .100 | .120 | .083 |
| 5 | 5.125 | 4.875 | 4.805 | 4.981 | 4.907 | .072 | .125 | .160 | .109 |
| 4 | 4.125 | 3.897 | 3.857 | 4.009 | 3.935 | .058 | .114 | .134 | .095 |
| 6 | 6.125 | 5.845 | 5.741 | 5.959 | 5.881 | .083 | .140 | .192 | .122 |
Copper Tube For Marine Application Chemical Composition
Copper Cu
99%
Phosphorus P
1%
Copper Tube For Marine Application Mechanical Properties
| Standard | Copper Alloy No. | Mechanical Properties | |||
| Tensile strength (Mpa) | Grain Size (mm) | Elongation(%) | Temper | ||
| EN 1057 | – | O250 | – | O30 or 20 | R250 |
| O220 | – | O40 | R220 | ||
| O290 | – | O3 | R290 | ||
| JIS H3300 | C1100 | 245 ~ 325 | – | – | OL |
| O205 | – | O40 | |||
| O265 | – | – | H | ||
| C1220 | O255 | – | – | H | |
| O205 | O0.040 | O40 | OL | ||
| O205 | 0.025 ~ 0.060 | O40 | O | ||
| 245 ~ 325 | – | – | 1/2H | ||
| ASTM B88 | C11000 | O200 | O0.025 | – | O50 |
| O200 | O0.040 | – | O60 | ||
| C12200 | O250 | – | – | H58 | |
| ASTM B75 | C11000 | O205 | O0.040 | – | O50 |
| O205 | O0.040 | – | O60 | ||
| C12200 | O310 | – | – | H80 | |
| O250 | – | – | H58 | ||
Application Of Copper Tube For Marine Application
Oil & Gas Industries
Petrochemical Industries
Medical & HealthCare Industries
Construction & Plumbing Industries
(EV) Automobiles Industries
Copper Tube for Marine Application Stock Available
- ASTM B280 Marine Copper Tube
- Seamless Copper Water Tube
- Copper Seamless Tubing For Marine Application
- Copper Tubes for Marine Application
- Marine Grade Copper Pipe
- Copper Marine Condenser Tube
- ASME SB280 Copper Seamless Tube
- Table X Copper Tube for Marine
- Copper Hard Drawn Tube Marine
Packaging of Copper Tube For Marine Application
Types of Packaging Available
Copper Tubes for Marine Applications are packed using durable and moisture-resistant materials to ensure maximum protection during long-distance transport. Each packaging type is designed to prevent corrosion, dents, or surface damage, maintaining tube quality in harsh marine environments.
- Wooden Boxes / Wooden Crates
- Coil Form Packaging
- PVC Wrapped Bundles
Copper Tube For Marine Application Manufacturer, Supplier and Exporter - United Copper Industries
Cities We Supply Copper Tube For Marine Application in India
| Cities We Supply Copper Tube For Marine Application in India | |||
| Gujarat | Delhi | Mumbai | Ahmedabad |
| Surat | Gandhinagar | Visakhapatnam | Pune |
| Patna | Indore | Faridabad | Ghaziabad |
| Goa | Guwahati | Bhosari | Hubli |
| Jabalpur | Jamshedpur | Kanpur | Kochi |
| Prayagraj | Vijayawada | Rajkot | Meerut |
| Noida | Kolkata | Lucknow | Raipur |
| Ranchi | Rajasthan | Hyderabad | Bhubaneswar |
| Thane | Varanasi | Vadodara | Coimbatore |
Copper Tube For Marine Application Exporter
Germany
Brazil
Malaysia
Qatar
Kuwait
Saudi
Oman
USA
UAE
