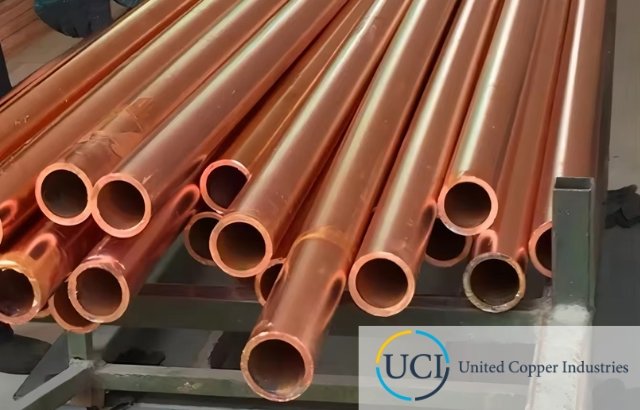

United Copper Industries is one of the leading Copper Tube for ACR Applications Manufacturer in India, which uses high-tech and advanced technology to manufacture precision and durability of Copper Tube for ACR applications. Our ACR Soft Copper Tube is manufactured under a tight control system of ISO-certified as well and can be used in diverse application regions of HVAC and refrigeration. We also supply Type L, M, and K Copper Tubing in prudent packaging solutions which safeguard the Copper Tube for ACR applications throughout handling and delivery, which means that the product will perform its functions long in all installations.
- Strong resistance to seawater corrosion.
- Excellent heat transfer for marine cooling systems.
Table of Content
- Copper Tube for ACR Application Specification
- Types of Copper Tube for ACR Application
- Size Chart Of Copper Tube for ACR Application
- Chemical Copper Tube for ACR Application
- Mechanical Compostion of Copper Tube for ACR Application
- Application of Copper Tube for ACR Application
- Copper Tube for ACR Application Stock Available
- Packaging of Copper Tube for ACR Application
- Cities We Supply Copper Tube for ACR Application in India
- Copper Tube for ACR Application Exporter
Copper Rectangular Tubing ACR Application, ASTM B819 Seamless Copper Tubing for ACR Application, Alloy 25 Copper tube Supplier in India
United Copper Industries is a major Copper Tube for ACR Application Manufacturer and Supplier in India, And supply precision-made copper tubing using high-tech cold and hot-rolled process technology. Our ACR tubes come in standard sizes of between 6 mm and 19 mm and custom lengths of up to 3 meters to 30 meters, guaranteeing good performance across the HVAC systems. We also supply high-strength tempered products and Durable Copper rectangular Tubing to be used in ACR applications in response to the requirements of the industry.
copper Tube for air conditioning, Alloy 25 Copper tube, Copper Tube ACR Application Stockist, Copper Tube for ACR Application Manufacturer in India
United Copper Industries is a major Copper Tube for ACR Application Manufacturer in India, and the Copper Tube for ACR is of high quality in terms of hardness and durability. We have Copper Tube ACR Application at the lowest with high quality, such as Copper C12200 Tubes ACR Application, which is backed by full material test and safe packaging. These Copper Tubes for ACR have numerous applications of Copper Tube to ACR Application in HVAC systems, which supply good Copper Hard Drawn Pipe ACR Application. We are also a reputable of Copper Tube for Earthing systems Manufacturer in India.
Specification of Copper Tube for ACR Application
| Copper Tube ACR | Specification |
| Specification | ASTM B280, JIS H3300, AS/NZS1571.JIS3300-2006 |
| Material | TU2, C1020T, C10200, T2, C1100, TP1, C1201T, C1200, TP2, C1220T, C12200, C14200, C19400, etc |
| Outer Diameter(OD) | 4mm to 150mm |
| Wall Thickness : | 0.2mm~5mm |
| Length | 15 meters to 30 meters |
| Types : | Seamless Pipes and Tube / Inner Grooved Pipes / Square Pipes and Tube / Rectangular Pipes & Tube / Finned Pipes & Tube |
Types Of Copper Tube for ACR Application
Copper Tube For ACR Application Size Chart
| Outside Diameter in mm | Thickness in mm |
| 4.76 mm=3/16” | 0.35 – 1.00 |
| 6.00 | 0.35 – 1.00 |
| 4.0 | 0.40/0.45/0.50 |
| 6.35 mm=1/4” | 0.35 – 1.20 |
| 8.00 | 0.30 – 1.20 |
| 7.94 mm=5/16” | 0.30 – 1.20 |
| 28.57 mm= 1 1/8” | 0.70 – 1.50 |
| 12.00 | 0.35 – 1.50 |
| 9.52 mm=3/8” | 0.30 – 1.50 |
| 14.00 | 0.40 – 1.50 |
| 12.70 mm=1/2” | 0.35 – 1.50 |
| 15.00 | 0.40 – 1.50 |
| 16.00 | 0.50 – 1.50 |
| 15.88 mm=5/8” | 0.40-1.50 |
| 19.05 mm=3/4” | 0.60 – 1.50 |
Copper Tube For ACR Application Chemical Composition
Copper Cu
Phosphorus P
Copper Tube For ACR Application Mechanical Properties
| Standard | Copper Alloy No. | Mechanical Properties | |||
| Tensile strength (Mpa) | Grain Size (mm) | Elongation(%) | Temper | ||
| EN 1057 | – | O250 | – | O30 or 20 | R250 |
| O220 | – | O40 | R220 | ||
| O290 | – | O3 | R290 | ||
| JIS H3300 | C1100 | 245 ~ 325 | – | – | OL |
| O205 | – | O40 | |||
| O265 | – | – | H | ||
| C1220 | O255 | – | – | H | |
| O205 | O0.040 | O40 | OL | ||
| O205 | 0.025 ~ 0.060 | O40 | O | ||
| 245 ~ 325 | – | – | 1/2H | ||
| ASTM B88 | C11000 | O200 | O0.025 | – | O50 |
| O200 | O0.040 | – | O60 | ||
| C12200 | O250 | – | – | H58 | |
| ASTM B75 | C11000 | O205 | O0.040 | – | O50 |
| O205 | O0.040 | – | O60 | ||
| C12200 | O310 | – | – | H80 | |
| O250 | – | – | H58 | ||
Application Of Copper Tube For ACR
Oil & Gas Industries
Petrochemical Industries
Medical & HealthCare Industries
Construction & Plumbing Industries
(EV) Automobiles Industries
Copper Tube for ACR Application Stock Available
- HVACR Copper Tube
- Copper Tubes for ACR Application
- Type L ACR Copper Tubing
- ACR Soft Copper Tubing
- ACR Refrigerant Tube
- ACR Copper Tube
- ASTM B280 ACR Copper Tube
- Type L Copper ACR Tube
- Copper Welded ACR Tube
Packaging of Copper Tube for ACR Application
Types of Packaging Available
Copper Tube for ACR Application is supplied in high-quality, contamination-free packaging to maintain purity and protect the tubes during transportation. Each packing option follows strict ACR and HVACR handling standards to ensure damage-free delivery.
- Cleaned, Capped & Packed Coils
- Shrink-Wrapped Straight Length Tube
- Wooden Box / Crate Export Packaging
Copper Tube for ACR Application Manufacturer, Supplier and Exporter - United Copper Industries
